Kenwood

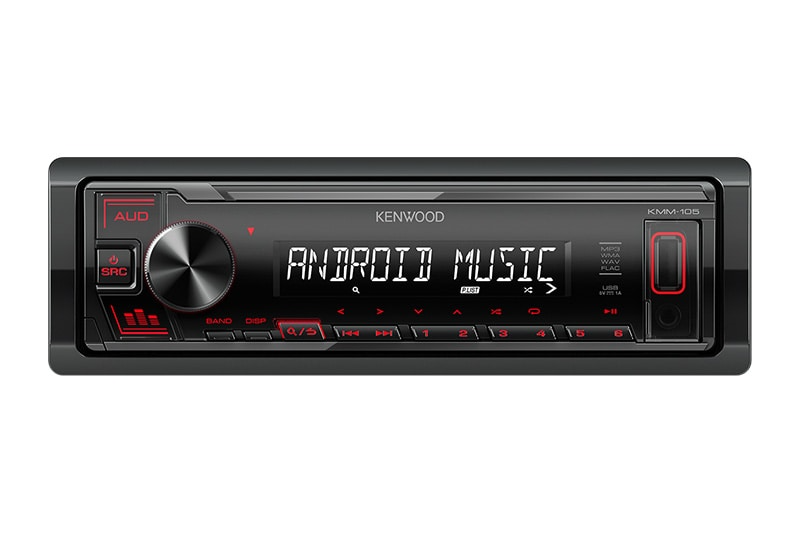

KMM-105 USB Receiver
KMM-105 USB Receiver
SKU:KMM-105
Regular price
Dhs. 225.00 AED
Regular price
Sale price
Dhs. 225.00 AED
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
-
Authorized Seller
-
Flexible Returns
-
100% Genuine Product
-
2 Years2 Years Warrenty
Description
Experience ultimate convenience and control with the KMM-105 USB Receiver. Easily detach the faceplate for added security. Directly access audio controls with the dedicated key. Enjoy customizable ambiance with red/white color illumination. Connect effortlessly with front USB and AUX IN ports. Plus, enhance your sound with 1 Preout 2.5V.
| FM | Frequency Range(MHz) (Frequency step) |
87.5MHz to 108.0MHz (50kHz) |
|---|---|---|
| Usable Sensitivity S/N30dB |
0.71μV/75Ω | |
| Quieting Sensitivity DIN S/N 46dB |
(2.0μV/75Ω） | |
| Frequency Response (±3.0dB) |
30Hz to 15kHz | |
| S/N(dB) | 64.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| MW (AM) |
Frequency Range(kHz) (Frequency step) |
531kHz to 1611kHz (9kHz) |
| Usable Sensitivity (S/N 20dB) |
28.2μV | |
| LW | Frequency Range(kHz) (Frequency step) |
153kHz to 279kHz (9kHz) |
| Usable Sensitivity (S/N 20dB) |
50μV | |
| Preout Level(mV)/Load      -Unbalanced | 2500mV/10kΩ(USB) | |
| Preout Impedance(Ω) | ≦600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| USB I/F | USB | USB 1.1 / 2.0 Full Speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 99dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 89dB | |
| MP3 decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA decode | Compliant with Windows Media Audio | |
| AAC Decode | - | |
| Treble | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 48kHz/16bit) | |
| AUX Input |
Frequency Response | 20 to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV | |
| Input Impedance | 30kΩ | |
| AMP | PWR(MAX) | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | |
| TONE | Bass | 100Hz ±8dB |
| Middle | 2.5kHz ±8dB | |
| Treble | 12.5kHz ±8dB | |
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) (H) (D) |
182mm 53mm 100mm |
|
| Net Weight (Trim plate and Mounting sleeve: Included) |
0.6kg | |
